3.3.11.4. MDD Embedded Files API

Software Architecture: MDD Embedded Files API arch~sovd-api-mdd-embedded-files
status: draft
links incoming: req~sovd-api-mdd-embedded-files

Note

This is a SOVD-API extension.

Motivation

When an additional private SOVD-Server is tasked with providing functionality that replaces classic offboard-tester functionality, additional data from the single-ecu-jobs embedded in the original pdx-file can be required.

The odx-converter offers an option to include code-files from the pdx, as well as partial contents from those files. This API allows the retrieval of these files.

Embedded Content Retrieval

The API to retrieve embedded files utilizes a bulk-data endpoint, as defined in Bulk Data

Endpoints within /components/{ecuName}:

MDD embedded files endpoints

Method

Path

Description

GET

/x-sovd2uds-bulk-data/mdd-embedded-files

Returns a list of items which represent the files and their metadata

GET

/x-sovd2uds-bulk-data/mdd-embedded-files/{id}

Returns an item, which is the data that was embedded

Other methods are not allowed (e.g. data can’t be modified), and will return an HTTP 405 error code.

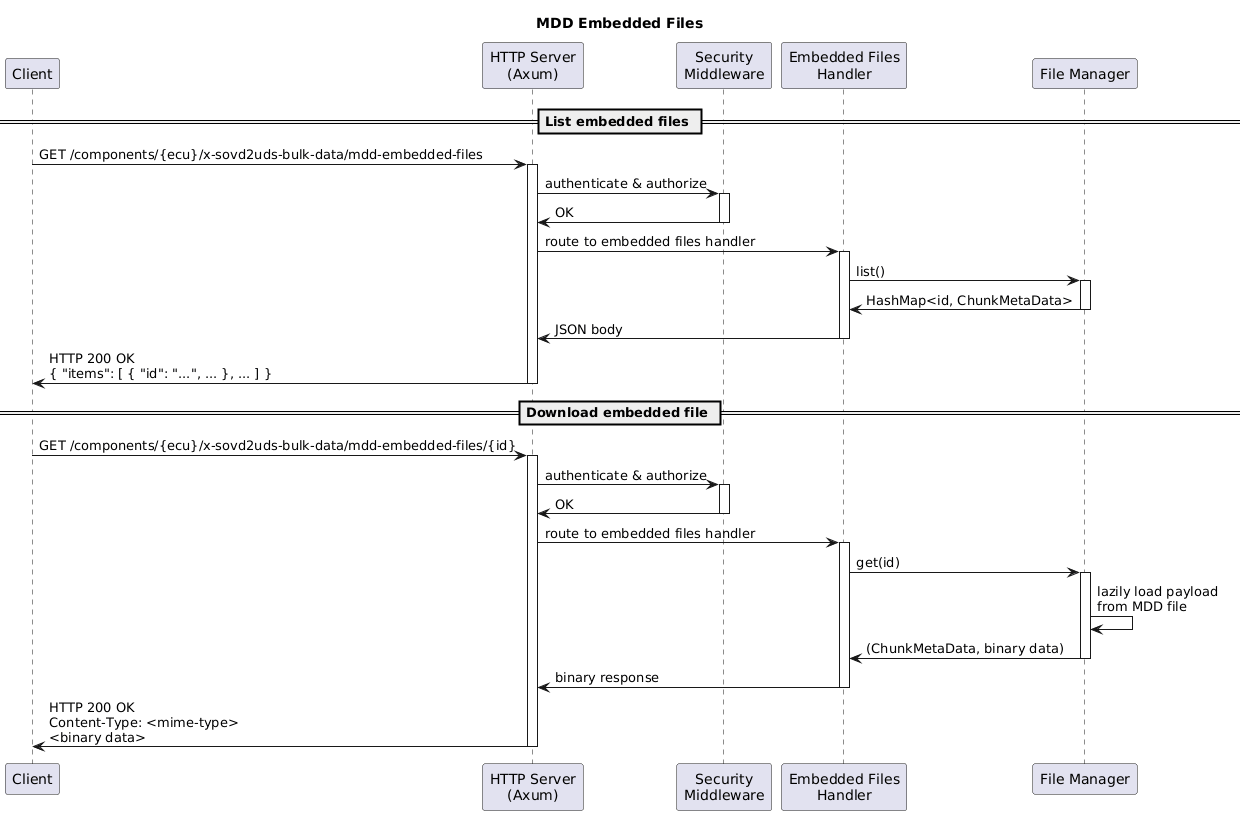

' SPDX-FileCopyrightText: 2026 Copyright (c) Contributors to the Eclipse Foundation ' ' See the NOTICE file(s) distributed with this work for additional ' information regarding copyright ownership. ' ' This program and the accompanying materials are made available under the ' terms of the Apache License Version 2.0 which is available at ' https://www.apache.org/licenses/LICENSE-2.0 ' ' SPDX-License-Identifier: Apache-2.0 @startuml title MDD Embedded Files participant Client participant "HTTP Server\n(Axum)" as HTTP participant "Security\nMiddleware" as SEC participant "Embedded Files\nHandler" as HANDLER participant "File Manager" as FM == List embedded files == Client -> HTTP : GET /components/{ecu}/x-sovd2uds-bulk-data/mdd-embedded-files activate HTTP HTTP -> SEC : authenticate & authorize activate SEC SEC -> HTTP : OK deactivate SEC HTTP -> HANDLER : route to embedded files handler activate HANDLER HANDLER -> FM : list() activate FM FM -> HANDLER : HashMap<id, ChunkMetaData> deactivate FM HANDLER -> HTTP : JSON body deactivate HANDLER HTTP -> Client : HTTP 200 OK\n{ "items": [ { "id": "...", ... }, ... ] } deactivate HTTP == Download embedded file == Client -> HTTP : GET /components/{ecu}/x-sovd2uds-bulk-data/mdd-embedded-files/{id} activate HTTP HTTP -> SEC : authenticate & authorize activate SEC SEC -> HTTP : OK deactivate SEC HTTP -> HANDLER : route to embedded files handler activate HANDLER HANDLER -> FM : get(id) activate FM FM -> FM : lazily load payload\nfrom MDD file FM -> HANDLER : (ChunkMetaData, binary data) deactivate FM HANDLER -> HTTP : binary response deactivate HANDLER HTTP -> Client : HTTP 200 OK\nContent-Type: <mime-type>\n<binary data> deactivate HTTP @enduml
