3.2. General

3.2.1. Storage Access

Software Architecture: Storage Access API arch~system-storage-access-abstraction
status: draft
links outgoing: dimpl~storage-local-filesystem-implementation, dimpl~storage-atomic-commit, dimpl~storage-crash-recovery, dimpl~storage-wal-journaling, test~storage-atomicity-recovery-discards-recording-phase-crash, test~storage-atomicity-recovery-restores-overwritten-file, test~storage-atomicity-recovery-removes-new-file, test~storage-atomicity-recovery-removes-new-collection, test~storage-atomicity-recovery-cleans-orphaned-backups, test~storage-atomicity-recovery-discards-corrupt-wal, test~storage-atomicity-recovery-removes-orphaned-collection-dir, test~storage-wal-checksum-round-trip, test~storage-wal-truncation-detection
links incoming: req~system-storage-access-abstraction

The Storage Access API provides an abstraction layer for storage access, allowing the CDA to interact with different types of storage systems (e.g., local file system, databases) without being tightly coupled to a specific implementation.

To achieve atomicity and consistent behavior across different storage implementations, the API defines the following semantics:

  • All operations must be atomic, meaning that either all changes are applied successfully, or none are applied in case of an error.

  • The API should provide a consistent interface for reading and writing data, regardless of the underlying storage system.

  • Error handling should be standardized, allowing the CDA to gracefully handle storage-related exceptions and errors.

  • Keys shall be handled case-insensitive, to simplify usage, and to avoid issues with different storage implementations.

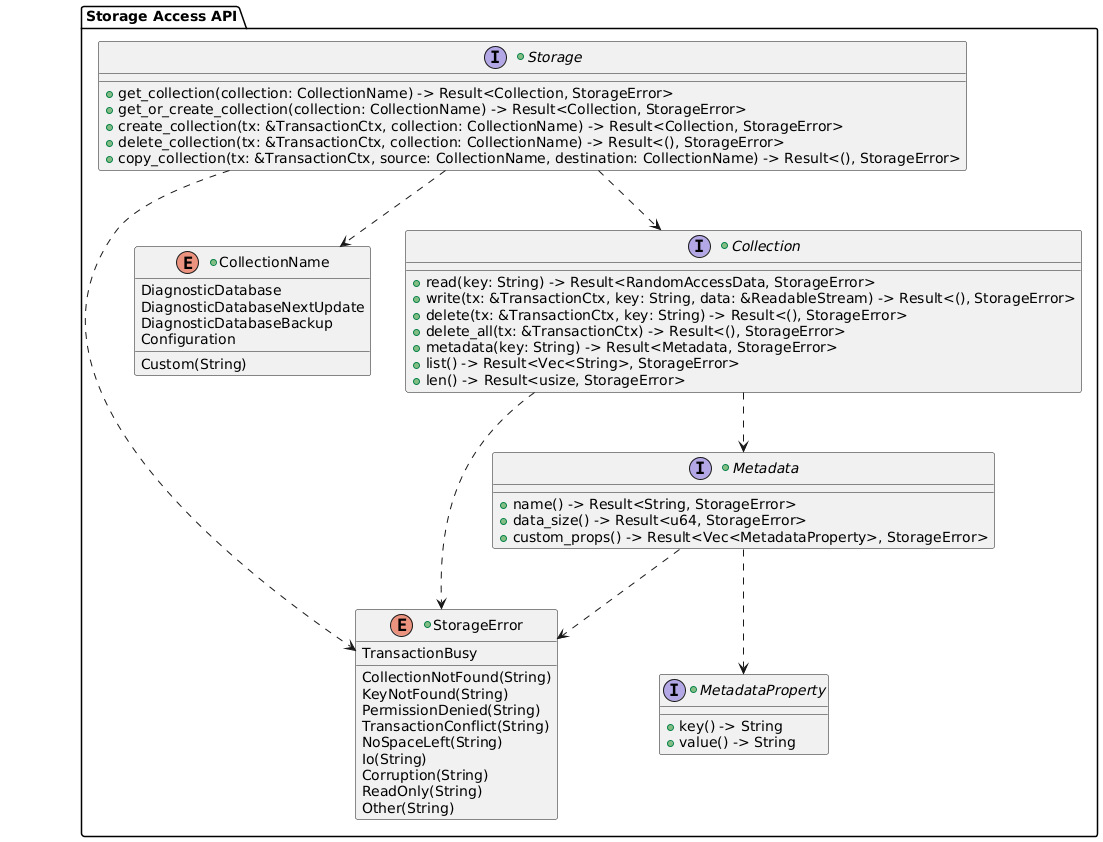

@startuml package "Storage Access API" { +enum StorageError { CollectionNotFound(String) KeyNotFound(String) PermissionDenied(String) TransactionBusy TransactionConflict(String) NoSpaceLeft(String) Io(String) Corruption(String) Other(String) } +enum CollectionName { DiagnosticDatabase DiagnosticDatabaseNextUpdate DiagnosticDatabaseBackup Configuration Custom(String) } +interface Storage { +get_collection(collection: CollectionName) -> Result<Collection, StorageError> +get_or_create_collection(collection: CollectionName) -> Result<Collection, StorageError> +create_collection(tx: &TransactionCtx, collection: CollectionName) -> Result<Collection, StorageError> +delete_collection(tx: &TransactionCtx, collection: CollectionName) -> Result<(), StorageError> +copy_collection(tx: &TransactionCtx, source: CollectionName, destination: CollectionName) -> Result<(), StorageError> } +interface Collection { +read(key: String) -> Result<RandomAccessData, StorageError> +write(tx: &TransactionCtx, key: String, data: &ReadableStream) -> Result<(), StorageError> +delete(tx: &TransactionCtx, key: String) -> Result<(), StorageError> +delete_all(tx: &TransactionCtx) -> Result<(), StorageError> +metadata(key: String) -> Result<Metadata, StorageError> +list() -> Result<Vec<String>, StorageError> +len() -> Result<usize, StorageError> } +interface Metadata { +name() -> Result<String, StorageError> +data_size() -> Result<u64, StorageError> +custom_props() -> Result<Vec<MetadataProperty>, StorageError> } +interface MetadataProperty { +key() -> String +value() -> String } Storage ..> Collection Storage ..> CollectionName Collection ..> StorageError Collection ..> Metadata Storage ..> StorageError Metadata ..> StorageError Metadata ..> MetadataProperty } @enduml

A transaction context shall be created through a transaction { ... } block, which ensures that all operations within the block are treated as a single atomic transaction. If any operation within the block fails, the entire transaction will be rolled back, and the result of the transaction will be an error.

If all operations succeed, the transaction will be committed, and the result will be a success.

Should an unexpected interruption event (power-off, reset) occur during a transaction, the transaction must be rolled back on the next startup, to ensure consistency of the storage state.

For reading data, random access to the data must be supported, to allow for efficient reading of arbitrary chunks without needing to load it entirely into memory. This might be required for memory efficient handling of the diagnostic database.

The get_or_create_collection function creates an implicit transaction for the creation of the collection only, if it does not exist. If the collection already exists, it simply returns it.

3.2.2. Persistence

Software Architecture: Persistence API arch~system-persistence-api
status: draft
links incoming: req~system-persistence-api

The Persistence API provides a durable key-value storage abstraction. Data is organized into Buckets, each representing a named, logically separated set of key-value pairs. The API is accessed through an exchangeable provider, enabling different storage backends without affecting consuming code.

@startuml package "Persistence API" { +enum PersistenceError { BucketNotFound(String) KeyNotFound(String) IoError(String) Other(String) } +interface Persistence { +get(bucket: String, key: String) -> Result<String, PersistenceError> +set(bucket: String, key: String, value: String) -> Result<(), PersistenceError> +delete(bucket: String, key: String) -> Result<(), PersistenceError> +contains(bucket: String, key: String) -> Result<bool, PersistenceError> +list_keys(bucket: String) -> Result<Vec<String>, PersistenceError> +flush() -> Result<(), PersistenceError> } Persistence ..> PersistenceError } @enduml

The Persistence interface is the single access point for all persistence operations. Callers specify the target Bucket by name alongside the key for each operation. Bucket management (creation, lifecycle) is handled transparently by the provider implementation.

The flush operation explicitly persists all buffered data to the underlying storage media. Providers that buffer writes in memory shall guarantee that all data is durable after a successful flush call.

Providers are exchangeable at compile time, allowing the use of alternative backends (e.g., an in-memory provider for testing purposes) without modifying consuming code.
Software Architecture: Default redb Persistence Provider arch~system-default-redb-persistence-provider
status: draft
links incoming: req~system-default-redb-persistence-provider

The default persistence provider uses redb as its storage backend. It implements the Persistence interface with the following characteristics:

  • All write operations (set, delete) are performed within ACID transactions, ensuring durability and consistency.

  • The database file path is configurable.

  • On unexpected interruption (power-off, crash), redb guarantees that uncommitted transactions are rolled back on the next open, preserving data integrity.

3.2.3. Systemd Watchdog Integration

Software Architecture: Systemd Watchdog Integration arch~system-sd-notify-watchdog-integration
status: draft
links outgoing: dimpl~system-sd-notify-watchdog-integration, test~system-sd-notify-watchdog-integration
links incoming: req~system-sd-notify-watchdog-integration

The systemd watchdog integration is implemented as an optional background task that bridges the CDA health system with the systemd service manager notification protocol.

Startup Detection

At initialization, the component checks whether the process was launched by systemd and whether the watchdog is enabled. If either condition is not met, no task is spawned and the CDA operates without watchdog integration.

Notification Interval

The notification interval is derived from the systemd-configured watchdog timeout, reduced by a safety margin to ensure notifications arrive before systemd considers the service unresponsive.

Health Aggregation

On each tick, the task queries all registered health providers and folds their individual statuses into a single aggregated status. The folding semantics are:

  • A single failed provider causes the aggregate to be failed.

  • All providers must report healthy for the aggregate to be healthy.

  • While any provider is still pending or starting, the aggregate remains in the starting state.

State Machine

The notification sent to systemd is determined by the transition between the previous and current aggregated status:

@startuml [*] --> Starting Starting --> Up : all providers healthy\n(notify: Ready) Up --> Up : still healthy\n(notify: Watchdog) Up --> Failed : provider degraded\n(notify: WatchdogTrigger) @enduml

Shutdown

The task terminates gracefully when the application shutdown signal is received.
