3.3.11.1. Flash-API

3.3.11.1.1. Introduction

Flashing via UDS generally follows the following sequence. OEMs might choose to call additional services or modify the sequence.

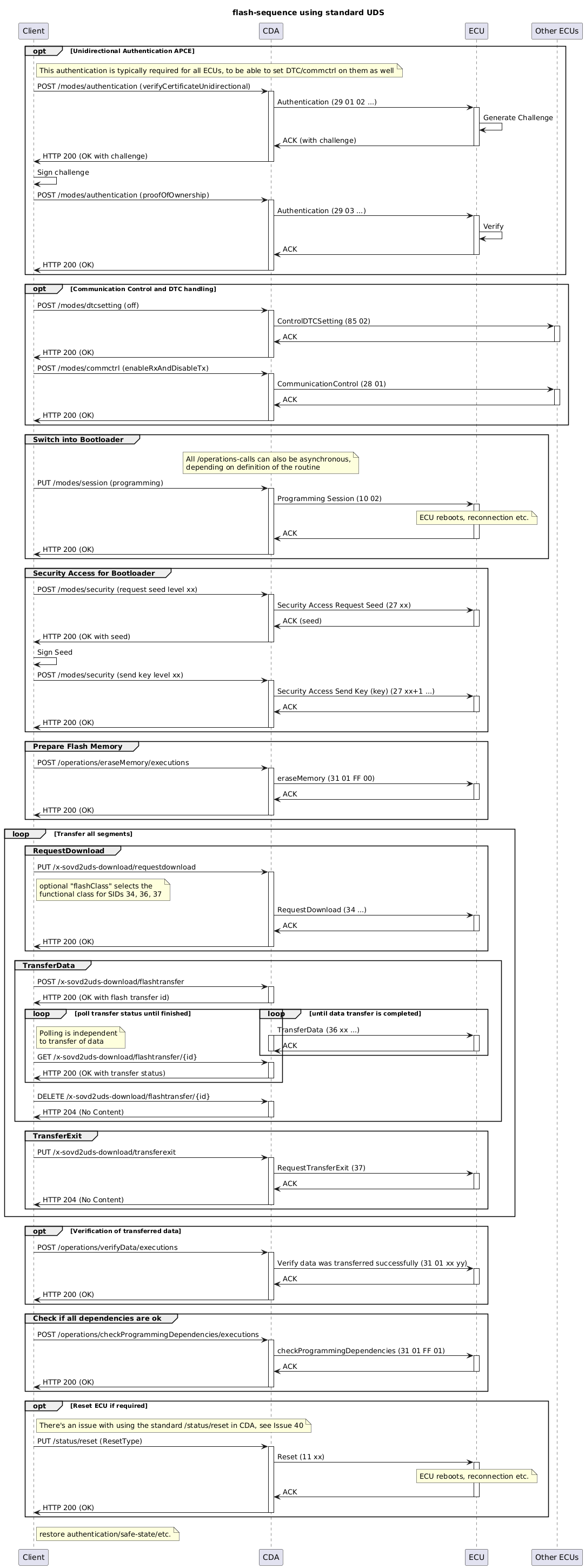

' SPDX-FileCopyrightText: 2026 Copyright (c) Contributors to the Eclipse Foundation ' ' See the NOTICE file(s) distributed with this work for additional ' information regarding copyright ownership. ' ' This program and the accompanying materials are made available under the ' terms of the Apache License Version 2.0 which is available at ' https://www.apache.org/licenses/LICENSE-2.0 ' ' SPDX-License-Identifier: Apache-2.0 @startuml title flash-sequence using standard UDS participant Client participant CDA participant ECU participant "Other ECUs" as OtherECUs !pragma teoz true opt Unidirectional Authentication APCE note right of Client : This authentication is typically required for all ECUs, to be able to set DTC/commctrl on them as well Client -> CDA : POST /modes/authentication (verifyCertificateUnidirectional) activate CDA CDA -> ECU : Authentication (29 01 02 ...) activate ECU ECU -> ECU : Generate Challenge ECU -> CDA : ACK (with challenge) deactivate ECU CDA -> Client : HTTP 200 (OK with challenge) deactivate CDA Client -> Client : Sign challenge Client -> CDA : POST /modes/authentication (proofOfOwnership) activate CDA CDA -> ECU : Authentication (29 03 ...) activate ECU ECU -> ECU : Verify ECU -> CDA : ACK deactivate ECU CDA -> Client : HTTP 200 (OK) deactivate CDA end opt Communication Control and DTC handling Client -> CDA : POST /modes/dtcsetting (off) activate CDA CDA -> OtherECUs : ControlDTCSetting (85 02) activate OtherECUs OtherECUs -> CDA : ACK deactivate OtherECUs CDA -> Client : HTTP 200 (OK) deactivate CDA Client -> CDA : POST /modes/commctrl (enableRxAndDisableTx) activate CDA CDA -> OtherECUs : CommunicationControl (28 01) activate OtherECUs OtherECUs -> CDA : ACK deactivate OtherECUs CDA -> Client : HTTP 200 (OK) deactivate CDA end group Switch into Bootloader note over CDA: All /operations-calls can also be asynchronous,\ndepending on definition of the routine Client -> CDA : PUT /modes/session (programming) activate CDA CDA -> ECU : Programming Session (10 02) activate ECU note over ECU : ECU reboots, reconnection etc. ECU -> CDA : ACK deactivate ECU CDA -> Client : HTTP 200 (OK) deactivate CDA end group Security Access for Bootloader Client -> CDA : POST /modes/security (request seed level xx) activate CDA CDA -> ECU : Security Access Request Seed (27 xx) activate ECU ECU -> CDA : ACK (seed) deactivate ECU CDA -> Client : HTTP 200 (OK with seed) deactivate CDA Client -> Client : Sign Seed Client -> CDA: POST /modes/security (send key level xx) activate CDA CDA -> ECU : Security Access Send Key (key) (27 xx+1 ...) activate ECU ECU -> CDA : ACK deactivate ECU CDA -> Client : HTTP 200 (OK) deactivate CDA end group Prepare Flash Memory Client -> CDA: POST /operations/eraseMemory/executions activate CDA CDA -> ECU : eraseMemory (31 01 FF 00) activate ECU ECU -> CDA : ACK deactivate ECU CDA -> Client : HTTP 200 (OK) deactivate CDA end loop Transfer all segments group RequestDownload Client -> CDA: PUT /x-sovd2uds-download/requestdownload note right of Client: optional "flashClass" selects the\nfunctional class for SIDs 34, 36, 37 activate CDA CDA -> ECU : RequestDownload (34 ...) activate ECU ECU -> CDA : ACK deactivate ECU CDA -> Client: HTTP 200 (OK) deactivate CDA end group TransferData Client -> CDA: POST /x-sovd2uds-download/flashtransfer activate CDA CDA -> Client: HTTP 200 (OK with flash transfer id) deactivate CDA loop until data transfer is completed CDA -> ECU: TransferData (36 xx ...) activate CDA activate ECU ECU -> CDA : ACK deactivate ECU deactivate CDA end & loop poll transfer status until finished note right of Client: Polling is independent\nto transfer of data Client -> CDA: GET /x-sovd2uds-download/flashtransfer/{id} activate CDA CDA -> Client: HTTP 200 (OK with transfer status) deactivate CDA end Client -> CDA: DELETE /x-sovd2uds-download/flashtransfer/{id} activate CDA CDA -> Client: HTTP 204 (No Content) deactivate CDA end group TransferExit Client -> CDA: PUT /x-sovd2uds-download/transferexit activate CDA CDA -> ECU : RequestTransferExit (37) activate ECU ECU -> CDA : ACK deactivate ECU CDA -> Client: HTTP 204 (No Content) deactivate CDA end end opt Verification of transferred data Client -> CDA: POST /operations/verifyData/executions activate CDA CDA -> ECU : Verify data was transferred successfully (31 01 xx yy) activate ECU ECU -> CDA : ACK deactivate ECU CDA -> Client: HTTP 200 (OK) deactivate CDA end group Check if all dependencies are ok Client -> CDA: POST /operations/checkProgrammingDependencies/executions activate CDA CDA -> ECU: checkProgrammingDependencies (31 01 FF 01) activate ECU ECU -> CDA : ACK deactivate ECU CDA -> Client: HTTP 200 (OK) deactivate CDA end opt Reset ECU if required note right of Client: There's an issue with using the standard /status/reset in CDA, see Issue 40 Client -> CDA: PUT /status/reset (ResetType) activate CDA CDA -> ECU: Reset (11 xx) activate ECU note over ECU : ECU reboots, reconnection etc. ECU -> CDA : ACK deactivate ECU CDA -> Client: HTTP 200 (OK) deactivate CDA end note right of Client: restore authentication/safe-state/etc. @enduml

To allow the flashing functionality shown above, the SOVD-API from ISO 17978-3 needs to be extended with the functionality defined in this document.

The standard doesn’t define how the required services should be mapped in the Classic Diagnostic Adapter.

3.3.11.1.2. API

Software Architecture: Management of flash files arch~sovd-api-flash-file-management
status: draft
links outgoing: arch~sovd-api-flash-folder-configuration
links incoming: req~sovd-api-flashing

Motivation

To flash an ECU, the CDA needs to have access to the files that should be flashed. This API allows listing the files that are available for flashing.

Endpoints

Flash file management

Method

Path

Description

Notes

GET

/apps/sovd2uds/bulk-data/flashfiles

Returns a list of entries that represent files in the configured flash folder and its subfolders.

Flash folder needs to be configured

' SPDX-FileCopyrightText: 2026 Copyright (c) Contributors to the Eclipse Foundation ' ' See the NOTICE file(s) distributed with this work for additional ' information regarding copyright ownership. ' ' This program and the accompanying materials are made available under the ' terms of the Apache License Version 2.0 which is available at ' https://www.apache.org/licenses/LICENSE-2.0 ' ' SPDX-License-Identifier: Apache-2.0 @startuml title Flash File Management participant Client participant "HTTP Server\n(Axum)" as HTTP participant "Security\nMiddleware" as SEC participant "Flash Handler" as HANDLER participant "File System" as FS Client -> HTTP : GET /apps/sovd2uds/bulk-data/flashfiles activate HTTP HTTP -> SEC : authenticate & authorize activate SEC SEC -> HTTP : OK deactivate SEC HTTP -> HANDLER : route to flash handler activate HANDLER HANDLER -> FS : list configured flash folder\n(recursive) activate FS FS -> HANDLER : list of files and metadata deactivate FS HANDLER -> HANDLER : build response with\nfile entries HANDLER -> HTTP : JSON body deactivate HANDLER HTTP -> Client : HTTP 200 OK\n{ "items": [ { "id": "...", "name": "...", ... }, ... ] } deactivate HTTP @enduml

Software Architecture: Flash data transfer arch~sovd-api-flash-data-transfer
status: draft
links outgoing: arch~sovd-api-flash-functional-class, arch~sovd-api-flash-folder-configuration
links incoming: req~sovd-api-flashing

Motivation

To flash an ECU, the CDA needs to be able to transfer the flash data to the ECU. This API allows transferring the data in block-sized chunks, as required by UDS.

Endpoints

All paths are prefixed with /components/{ecu-name}. The UDS services used by these endpoints are resolved through their functional class, see Flash service selection via... (arch~sovd-api-flash-functional-class).

Flash data transfer endpoints

Method

Path

Description

Notes

PUT

/x-sovd2uds-download/requestdownload

Calls the RequestDownload service 0x34

Returns 200 OK with the response of the RequestDownload service

POST

/x-sovd2uds-download/flashtransfer

Starts a background transfer of the data in the file given by id from an offset for a given length, using configurable chunk sizes (block size), and a configurable starting sequence number. It uses repeated calls to service 0x36 to transfer the data.

Returns 200 OK with an object containing an id to be used to retrieve the status. Plans: The API will be extended to also allow starting the transfer directly with absolute file paths.

GET

/x-sovd2uds-download/flashtransfer

Retrieve the ids of the flash transfers

–

GET

/x-sovd2uds-download/flashtransfer/{id}

Retrieve the status of the transfer with id

–

DELETE

/x-sovd2uds-download/flashtransfer/{id}

Removes a finished or aborted transfer with id, so that new transfers can be started

Returns 204 No Content

PUT

/x-sovd2uds-download/transferexit

Calls the RequestTransferExit service 0x37

Returns 204 No Content on success

Request bodies

Field names are matched case-insensitively.

Request body fields

Endpoint

Field

Type

Required

Description

requestdownload

requestDownload

object

yes

Request parameters of the RequestDownload service, keyed by parameter name

requestdownload

flashClass

string

no

Functional class used to resolve the service, see Flash service selection via... (arch~sovd-api-flash-functional-class)

flashtransfer

id

string

yes

Id of the flash file (see Management of flash files (arch~sovd-api-flash-file-management))

flashtransfer

offset

integer

yes

Offset in bytes within the file at which the transfer starts

flashtransfer

length

integer

yes

Number of bytes to transfer

flashtransfer

blockSize

integer

yes

Size of the individual TransferData blocks

flashtransfer

blockSequenceCounter

integer (0-255)

yes

Block sequence counter of the first TransferData request

flashtransfer

flashClass

string

no

Functional class used to resolve the service, see Flash service selection via... (arch~sovd-api-flash-functional-class)

transferexit

flashClass

string

no

Functional class used to resolve the service, see Flash service selection via... (arch~sovd-api-flash-functional-class). The body itself is optional.

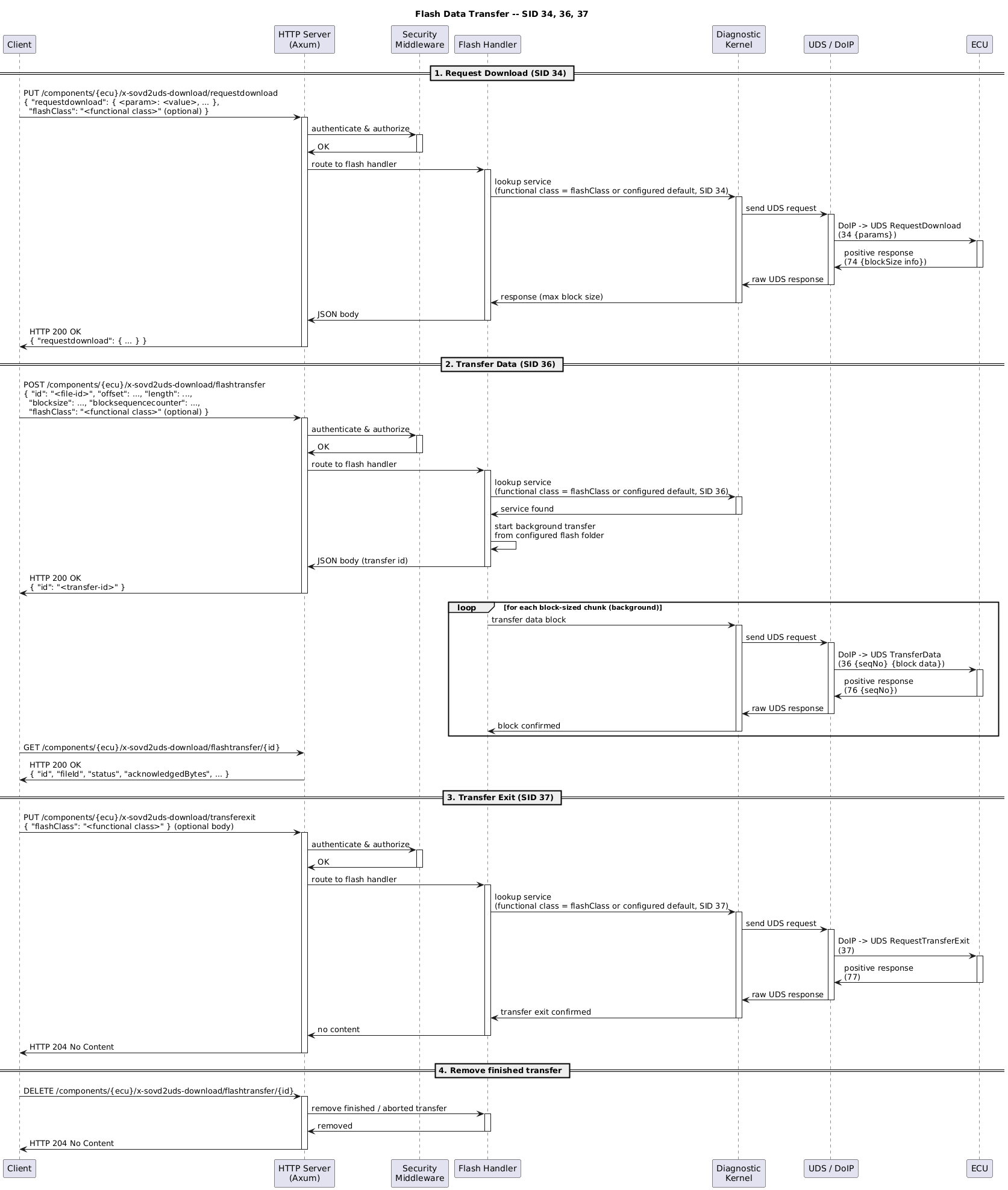

' SPDX-FileCopyrightText: 2026 Copyright (c) Contributors to the Eclipse Foundation ' ' See the NOTICE file(s) distributed with this work for additional ' information regarding copyright ownership. ' ' This program and the accompanying materials are made available under the ' terms of the Apache License Version 2.0 which is available at ' https://www.apache.org/licenses/LICENSE-2.0 ' ' SPDX-License-Identifier: Apache-2.0 @startuml title Flash Data Transfer -- SID 34, 36, 37 participant Client participant "HTTP Server\n(Axum)" as HTTP participant "Security\nMiddleware" as SEC participant "Flash Handler" as HANDLER participant "Diagnostic\nKernel" as DIAG participant "UDS / DoIP" as COMM participant ECU == 1. Request Download (SID 34) == Client -> HTTP : PUT /components/{ecu}/x-sovd2uds-download/requestdownload\n{ "requestdownload": { <param>: <value>, ... },\n "flashClass": "<functional class>" (optional) } activate HTTP HTTP -> SEC : authenticate & authorize activate SEC SEC -> HTTP : OK deactivate SEC HTTP -> HANDLER : route to flash handler activate HANDLER HANDLER -> DIAG : lookup service\n(functional class = flashClass or configured default, SID 34) activate DIAG DIAG -> COMM : send UDS request activate COMM COMM -> ECU : DoIP -> UDS RequestDownload\n(34 {params}) activate ECU ECU -> COMM : positive response\n(74 {blockSize info}) deactivate ECU COMM -> DIAG : raw UDS response deactivate COMM DIAG -> HANDLER : response (max block size) deactivate DIAG HANDLER -> HTTP : JSON body deactivate HANDLER HTTP -> Client : HTTP 200 OK\n{ "requestdownload": { ... } } deactivate HTTP == 2. Transfer Data (SID 36) == Client -> HTTP : POST /components/{ecu}/x-sovd2uds-download/flashtransfer\n{ "id": "<file-id>", "offset": ..., "length": ...,\n "blocksize": ..., "blocksequencecounter": ...,\n "flashClass": "<functional class>" (optional) } activate HTTP HTTP -> SEC : authenticate & authorize activate SEC SEC -> HTTP : OK deactivate SEC HTTP -> HANDLER : route to flash handler activate HANDLER HANDLER -> DIAG : lookup service\n(functional class = flashClass or configured default, SID 36) activate DIAG DIAG -> HANDLER : service found deactivate DIAG HANDLER -> HANDLER : start background transfer\nfrom configured flash folder HANDLER -> HTTP : JSON body (transfer id) deactivate HANDLER HTTP -> Client : HTTP 200 OK\n{ "id": "<transfer-id>" } deactivate HTTP loop for each block-sized chunk (background) HANDLER -> DIAG : transfer data block activate DIAG DIAG -> COMM : send UDS request activate COMM COMM -> ECU : DoIP -> UDS TransferData\n(36 {seqNo} {block data}) activate ECU ECU -> COMM : positive response\n(76 {seqNo}) deactivate ECU COMM -> DIAG : raw UDS response deactivate COMM DIAG -> HANDLER : block confirmed deactivate DIAG end Client -> HTTP : GET /components/{ecu}/x-sovd2uds-download/flashtransfer/{id} HTTP -> Client : HTTP 200 OK\n{ "id", "fileId", "status", "acknowledgedBytes", ... } == 3. Transfer Exit (SID 37) == Client -> HTTP : PUT /components/{ecu}/x-sovd2uds-download/transferexit\n{ "flashClass": "<functional class>" } (optional body) activate HTTP HTTP -> SEC : authenticate & authorize activate SEC SEC -> HTTP : OK deactivate SEC HTTP -> HANDLER : route to flash handler activate HANDLER HANDLER -> DIAG : lookup service\n(functional class = flashClass or configured default, SID 37) activate DIAG DIAG -> COMM : send UDS request activate COMM COMM -> ECU : DoIP -> UDS RequestTransferExit\n(37) activate ECU ECU -> COMM : positive response\n(77) deactivate ECU COMM -> DIAG : raw UDS response deactivate COMM DIAG -> HANDLER : transfer exit confirmed deactivate DIAG HANDLER -> HTTP : no content deactivate HANDLER HTTP -> Client : HTTP 204 No Content deactivate HTTP == 4. Remove finished transfer == Client -> HTTP : DELETE /components/{ecu}/x-sovd2uds-download/flashtransfer/{id} activate HTTP HTTP -> HANDLER : remove finished / aborted transfer activate HANDLER HANDLER -> HTTP : removed deactivate HANDLER HTTP -> Client : HTTP 204 No Content deactivate HTTP @enduml

Software Architecture: Flash service selection via functional class arch~sovd-api-flash-functional-class
status: draft
links outgoing: arch~sovd-api-flash-functional-class-configuration
links incoming: req~sovd-api-flashing, req~sovd-api-flashing-functional-class, arch~sovd-api-flash-data-transfer

Motivation

Diagnostic descriptions can contain multiple RequestDownload (0x34), TransferData (0x36) and RequestTransferExit (0x37) services with the same short name, which are distinguished only by their ODX functional class (e.g. different memory areas or flash procedures). The client must be able to select which of these services is used.

Service lookup

The services for the endpoints requestdownload (SID 0x34), flashtransfer (SID 0x36) and transferexit (SID 0x37) are resolved as follows:

  1. The functional class is taken from the optional request body field flashClass. If the field is not present, the configured default functional class is used (see Flash functional class conf... (arch~sovd-api-flash-functional-class-configuration)).

  2. The CDA searches the services of the ECU variant (including inherited services) for a service whose functional class short name equals the functional class (case-insensitive) and whose request SID matches the endpoint.

  3. The first matching service is used.

Error handling

  • If no service matches the functional class and SID, the request is rejected with 404 Not Found. The error message names the functional class and the SID.

  • If flashClass is present but empty, the request is rejected with 400 Bad Request.

Consistency

The CDA does not keep the functional class between requests; each request is resolved on its own. It is recommended that clients use the same flashClass for all requests of one download sequence (RequestDownload, TransferData, RequestTransferExit), but the CDA does not enforce this.

Examples

PUT /components/{ecu-name}/x-sovd2uds-download/requestdownload
{
  "flashClass": "flash_download_upload_bootloader",
  "requestDownload": { "<parameter>": "<value>" }
}

POST /components/{ecu-name}/x-sovd2uds-download/flashtransfer
{
  "id": "<file-id>",
  "offset": 0,
  "length": 4096,
  "blockSize": 1024,
  "blockSequenceCounter": 1,
  "flashClass": "flash_download_upload_bootloader"
}

PUT /components/{ecu-name}/x-sovd2uds-download/transferexit
{
  "flashClass": "flash_download_upload_bootloader"
}

3.3.11.1.3. Configuration

Software Architecture: Flash folder configuration arch~sovd-api-flash-folder-configuration
status: draft
links incoming: req~sovd-api-flashing-security, arch~sovd-api-flash-file-management, arch~sovd-api-flash-data-transfer

Motivation

The CDA needs to know where to find the files that should be flashed to the ECUs. This configuration allows setting the flash folder.

Configuration Parameter

The following configuration parameter must be available in the CDA configuration:

  • flash_files_path: Path to the folder where flash files are stored. The CDA must search this folder and its

    subfolders for files available through the bulk-data/flashfiles endpoints.
Software Architecture: Flash functional class configuration arch~sovd-api-flash-functional-class-configuration
status: draft
links incoming: req~sovd-api-flashing-functional-class, arch~sovd-api-flash-functional-class

Motivation

Functional class names differ between diagnostic descriptions. The functional class used to resolve the flash services when the client does not provide flashClass must therefore be configurable (see Flash service selection via... (arch~sovd-api-flash-functional-class)).

Configuration Parameter

The following configuration parameter must be available in the CDA configuration, next to flash_files_path:

  • flash_functional_class_default: Default functional class used to resolve the services 0x34, 0x36 and 0x37 when no flashClass is provided in the request. Defaults to flash_download_upload. Compared case-insensitively.

flash_files_path = "/app/flash"
flash_functional_class_default = "flash_download_upload"
